Green Energy PV Modules Recycling Line for Full Automatic Silver Extraction

Ask Lasest Price
Brand Name :	PAIBO
Model Number :	PB-300
Price :	negotiable
Delivery Time :	35

Add to Cart

Product Details
Company Profile

Green Energy PV Modules Recycling Line for Full Automatic Silver Extraction

Product Description

Photovoltaic Solar Panels

Recycling Machine product description

Green Energy PV Modules Recycling Line for Full Automatic Silver Extraction

Photovoltaic Solar Panels Recycling Machine

Photovoltaic Solar Panels Recycling Machine The main components of photovoltaic modules are aluminum frame, glass, cell, EVA film, and backplane. Among them, the main component of glass is silica, and the secondary components are soda ash, limestone, magnesium oxide, alumina, mirabilite, and carbon; EVA is mainly ethylene-vinyl acetate copolymer; the core components of the battery are mainly monocrystalline silicon and Polysilicon; the main material of the frame is metal aluminum; the back plate is composed of two layers of PVF film and one layer of PET film. More than 90% of these materials can be recycled.

Photovoltaic Solar Panels Recycling Machine Structure: Aluminium Frame--Tempered Glass---Encapsulant- EVA---Solar cells---Encapsulant - EVA---Back Sheet---Junction Box

Green Energy PV Modules Recycling Line for Full Automatic Silver Extraction

We can Recycle Metal(Copper, Silver etc), Silicon, Plastic and Glass from the Whole Process.

In view of the current problems in the recycling of solar panel materials, we have developed a large-scale solar photovoltaic panel recycling equipment that is non-toxic, high in separation efficiency, low in cost, and easy to handle in terms of process flow, which has important application value and academic significance. The photovoltaic panel processing equipment extracts silicon powder, copper powder and plastic with high market value through physical crushing and sorting. There are generally three main steps for the recycling of photovoltaic modules: first, disassemble the modules by machine or manually, and remove the backplane, wires and aluminum frames; the second step is to remove the tempered glass; the third step is to disassemble the remaining components. The panels are crushed and sorted to extract metals and plastics.

Photovoltaic Solar Panels Recycling Machine working procress:

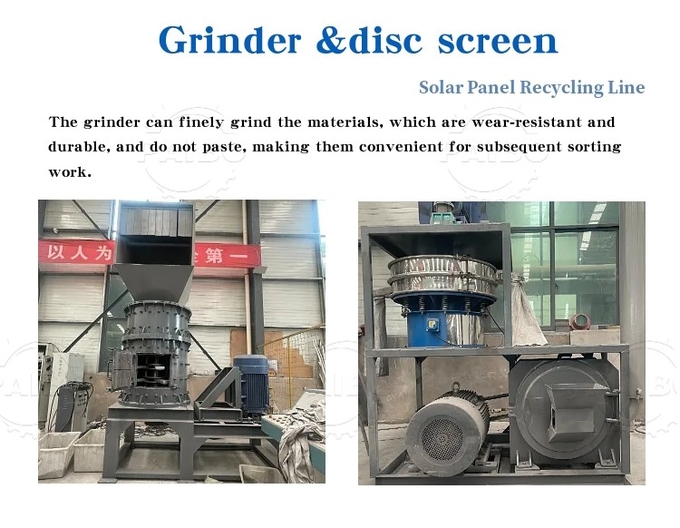

The scrapped photovoltaic panels enter the shredder for shredding, and the shredded materials enter the special shredder for shredding; Disperse the EVA film and the monocrystalline silicon wafer. The dispersed material enters the collector through the induced draft fan, and then is sorted to obtain silicon. The remaining mixed materials enter the special crusher, and then enter the airflow sorting screen through the air closer, and collect the positive metal and plastic through the airflow and vibration, and collect the dust generated by the airflow sorting machine at the same time.

Photovoltaic Solar Panels Recycling Machine Features:
1. Using crushing and sorting technology to realize the reuse of solar panels.
2. Compact structure, reasonable layout, stable performance and low noise.
3. The waste photovoltaic panel recycling and processing equipment adopts PLC to control the entire production line to feed
materials evenly and coordinate operation.
4. The efficiency of the pulse dust removal equipment is as high as 99%, and the dust can be volatilized effectively, which
fully meets the environmental protection requirements "Comprehensive Emission Standard of Air Pollutants

Photovoltaic Solar Panels Recycling Machine raw materials: used to process various waste solar photovoltaic panels, photovoltaic modules, etc., extract the metals

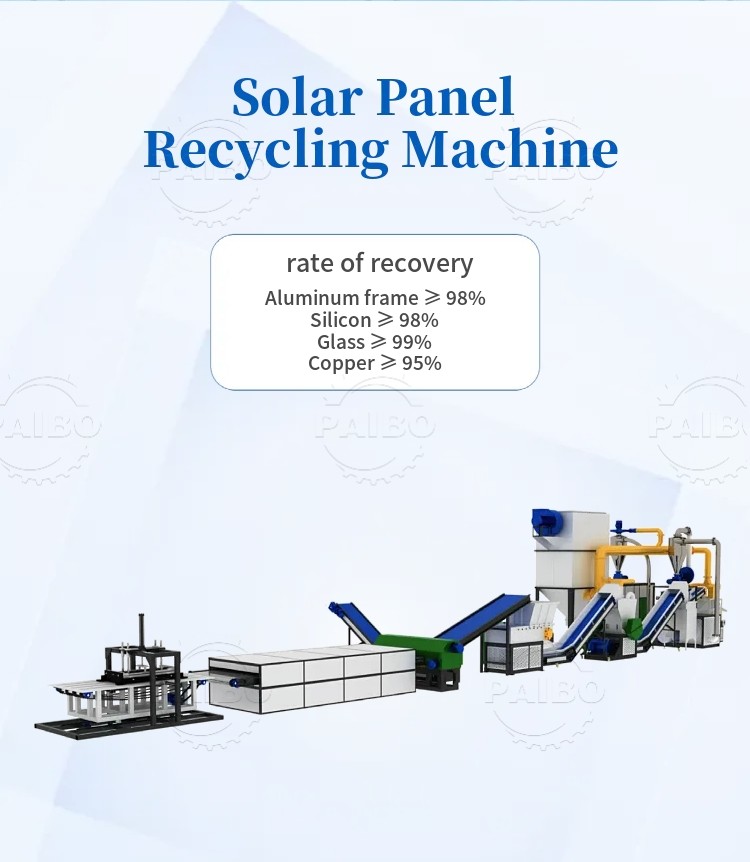

inside, and reuse resources. The equipment can recycle 95% of the material in crystalline silicon photovoltaic panels, and it is
specially designed to deal with "crystalline silicon" photovoltaic panels that have reached the end of their life. A typical
crystalline silicon solar panel is made of 65-75% glass, 10-15% aluminum frame, 10% plastic and 3-5% silicon. The photovoltaic panel recycling equipment dismantle, sort, process and recycle 98% of its materials.

Photovoltaic Solar Panels Recycling Machine Finished products that can be processed: After the sorted materials are processed and packaged, they will be sent to different industries for reuse. Two-thirds of glass is recycled as cullet, which is sent to the glass manufacturing industry; aluminum frames are sent to aluminum refineries; waste plastics can be used as fuel in cement plants; and recycled silicon can be recycled in the precious metals industry. Utilize; leftover cables and connectors are crushed and sold as copper beads.

Photovoltaic Solar Panels Recycling Machine Most materials of waste photovoltaic modules can be recycled. Although the silver, aluminum, tin and other metals contained in them are small in content, they have high recycling value. Using waste photovoltaic panel crushers and waste photovoltaic panel crushing equipment production lines can process the dismantling of power stations Components, dismantling of photovoltaic power generation panels, cells, silicon wafers, monocrystalline skins, monocrystalline silicon, polycrystalline skins, primary polycrystalline, polycrystalline square ingots, re-doped silicon materials, etc. to achieve the sorting process and results.

Model	Power (Kw)	Capacity (Kg/H)	Dimension (m)
PB-P300	102	200-300	2055
PB-P500	134	400-500	2565
PB-P800	194	600-800	3065
PB-P1000	238	800-1000	3585
