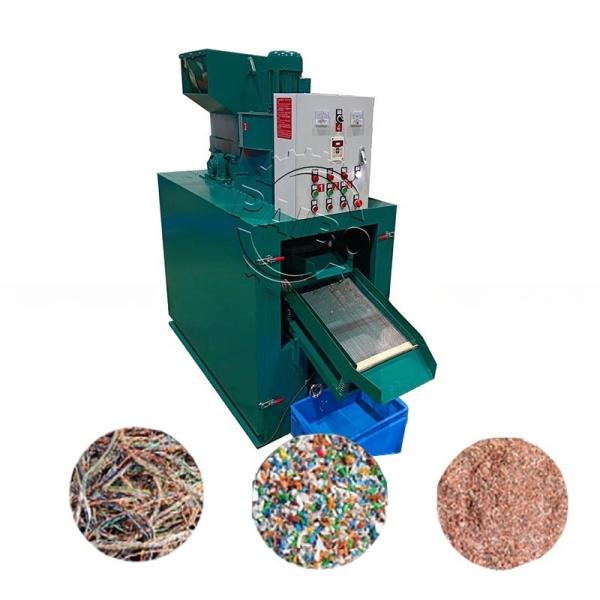

Small Copper Scrap Separator Shredder Recycling Wire Cable
Granulator Machines price
Product Description
Shredder Recycling Wire Cable Granulator Machines price:
The max. diameter of scrap cable is 60mm. It is easy to operation
and maintenance, the separation purity can reach 99% with single
copper core of diameter ≥0.2mm and the input capacity around 30-40
kg/hr.
| Specifications, parameters |
| Diameter range | rigid <10mm,flexible <20mm |
| Capacity | 20-50kg/h |
| Main motor | 3kW → Low power consumption , Energy conservation |
| Voltage | 1phase→ Every family can use it |
| Installation Size | 1.1*1.1*1.85m→mini structure,save space |
Shredder Recycling Wire Cable Granulator Machines price:
Copper cable granulator adopts advanced design, rational structure
and reliable operation.
The characteristics of the production line can not only deal with
thick wires which the normal crusher can process, but also the very
thin wire has good separation effect. The present production line
by feeding conveyor belt, heavy duty crushing machine, feeding
blower, vibrating screen, pulse dust collector, hydraulic Station and electrical
control cabinet and other components.
The waste cables or wires will become plastic pellets and copper
particles after been crushed. The mixed will jump and move ahead like wave type on the vibrating screen mesh surface. With airflow
function and screen box straight shock excitation, the sheath and
core will be separated, and get copper particles, plastic pellets
and mixture from different outlet areas.copper cable granulator adopts advanced design, rational structure
and reliable operation.
We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factoryto your port
by yourself.
FOB:We arrange freight transport to Qingdao,Shanghai or other ports
of China, then you arrange the shipping details from China port to
your country port.
CIF:We arrange all shipping details to your country
port, and ensure machines smooth arrival.
Shredder Recycling Wire Cable Granulator Machines Packing:
